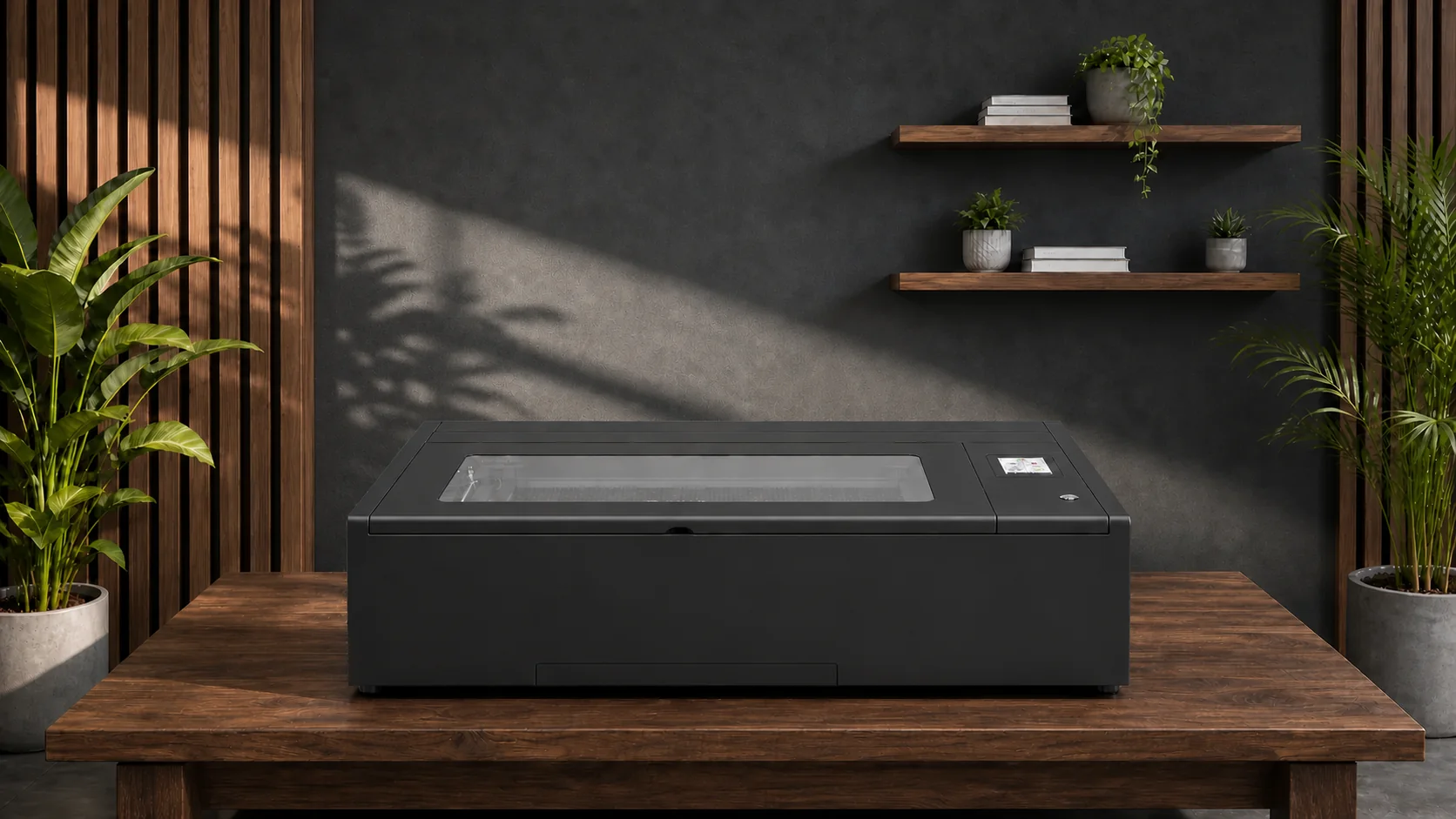

Beambox II | FLUX Official: Smart Laser Cutters to Bring Your Designs to Life

Ultimate Precision, Ready For Your Masterpiece.

Get the Highlights.

55W CO2
High Power

3X Faster
Engraving Speed

1.5X Larger
Work Area

Smart Auto
Alignment

5X Faster
Camera Preview

Built-in
Auto Focus

Their Experience. Your Next Step.

Keeping It Simple. Three Steps to Fulfilment.

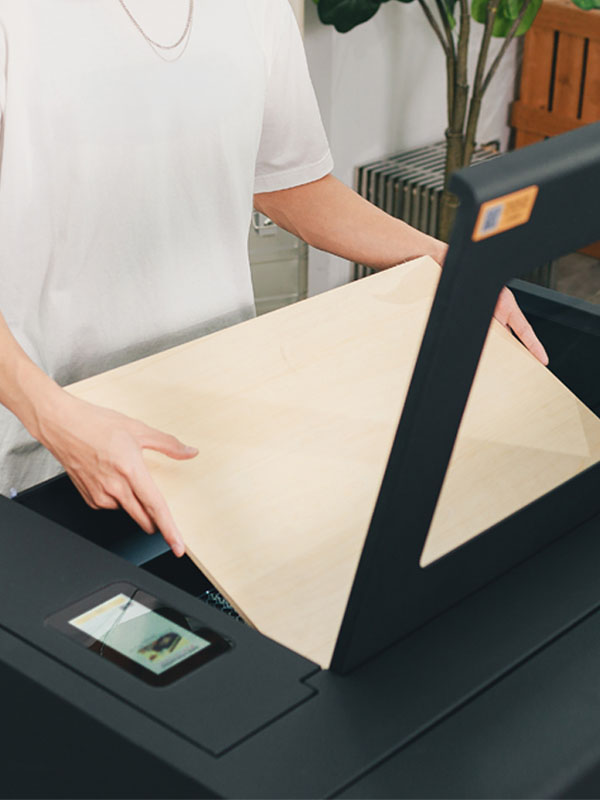

1. Place Your Material

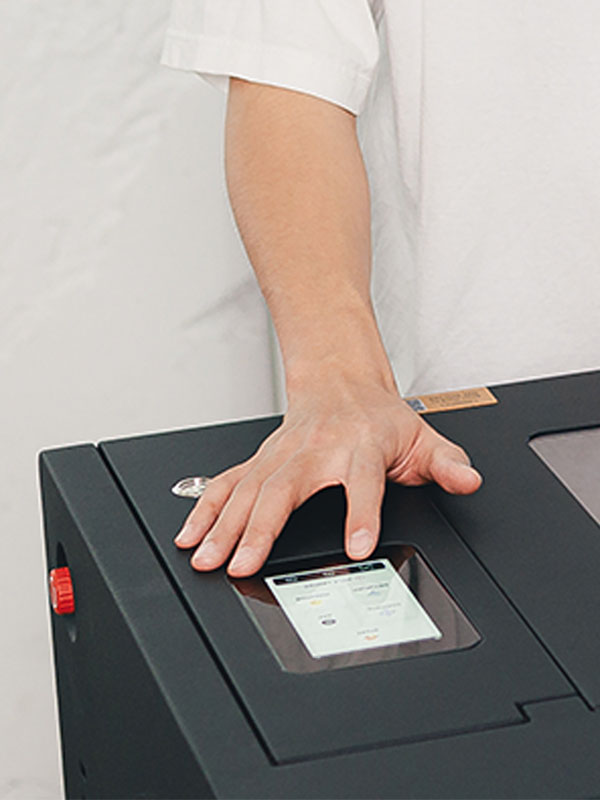

2. Tap to Auto Focus.

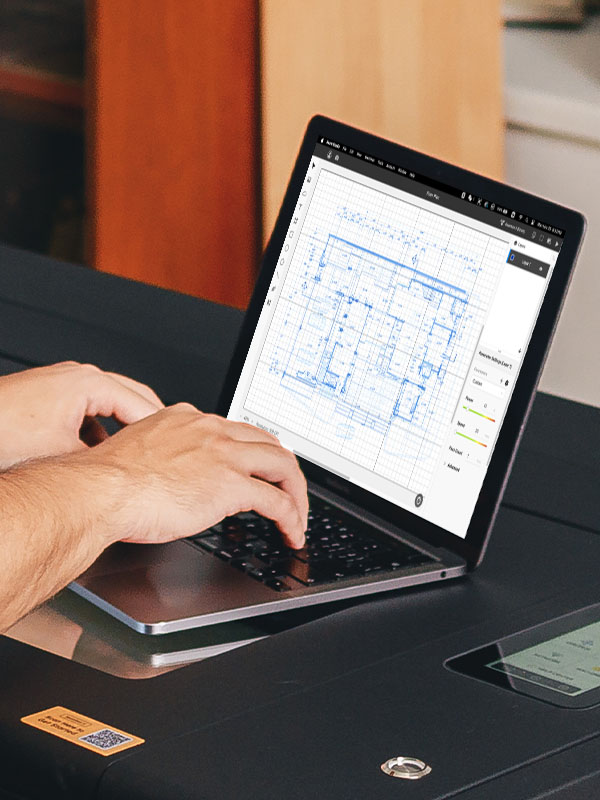

3. Import Your Design & Start

Project Complete!

Get Hands-On Training and Start Engraving.

The 55W Laser Upgrade. A Game-Changer.

Beambox II is now upgraded to 55W CO2 Laser, delivering exceptional cutting performance. Now, you can effortlessly cut through 20mm acrylic and 18mm Japanese cypress, whether it's intricate designs or bold creations—precision is guaranteed. Elevate your creative freedom and bring every idea to life without limits.

20 mm (0.79") Clear Acrylic Cutting

18 mm (0.71") Cypress Wood Cutting

900mm/s Ultra-Fast Engraving. Triple the Efficiency.

With engraving speeds of up to 900mm/s, accelerating your creations to new heights. This revolutionary upgrade boosts efficiency by three times, making it easier than ever to bring more complex designs to life. Whether it's intricate patterns or large-scale projects, Beambox II quickly and accurately transforms your ideas into reality, pushing the boundaries of creativity.

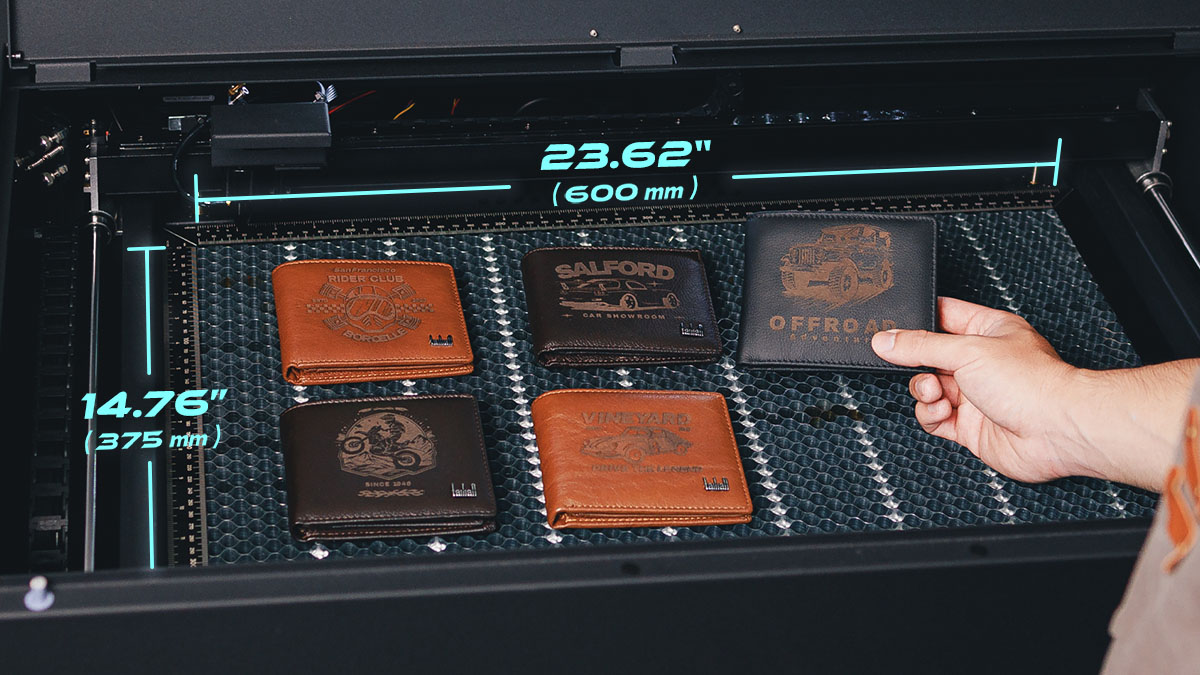

Larger Working Area, Expanded Creative Space.

Beambox II features an expanded working area of 23.62" x 14.76", with a depth of 4.92", which can be extended to 8.46" with an optional bottom tray. Effortlessly handle larger materials or process multiple items in one go.

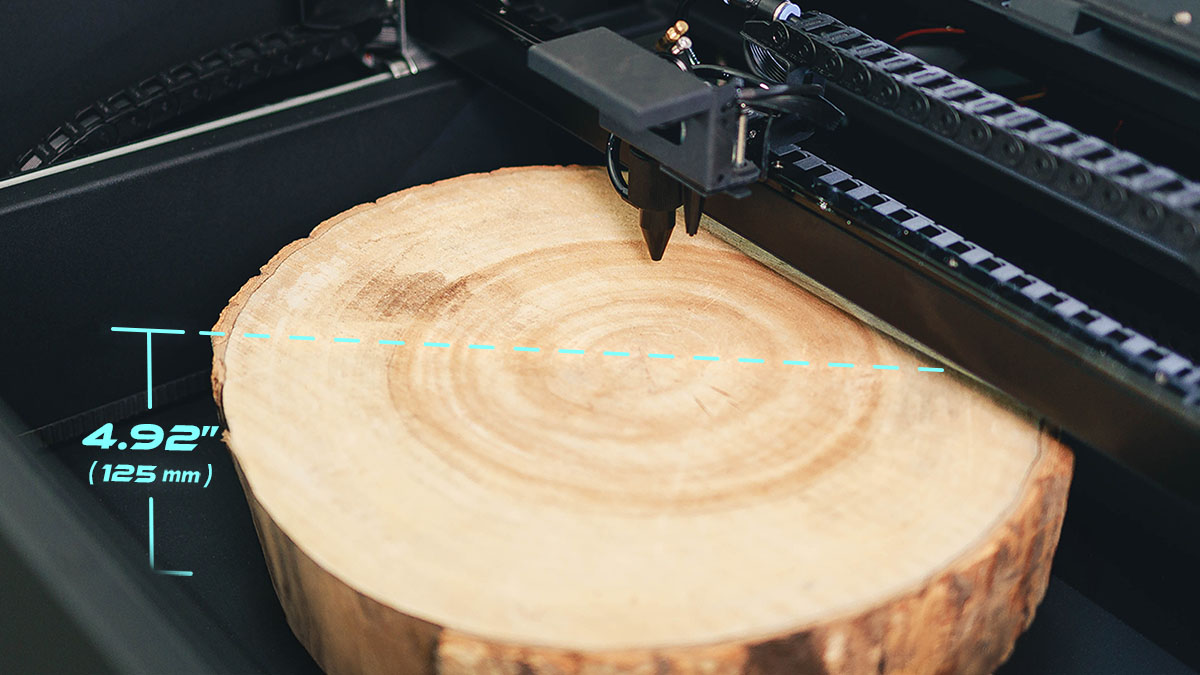

Deeper Work Depth. Endless Possibilities.

Upgraded from 3.15" to 4.92", offering greater flexibility and enhanced material handling capabilities. Remove the honeycomb tray to engrave even thicker materials, unlocking new creative possibilities.

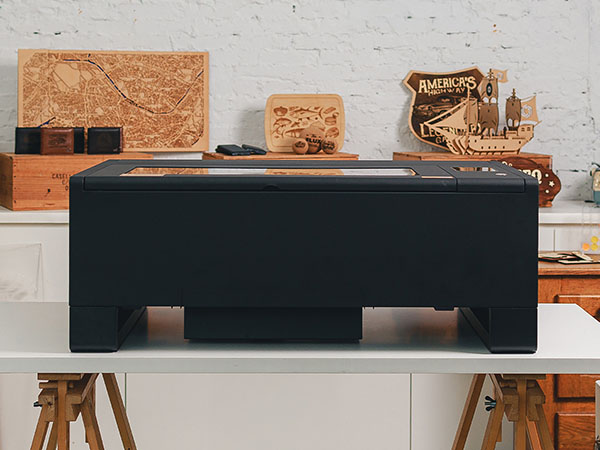

Extension Pocket Add-on. Unlock Thicker Possibilities.

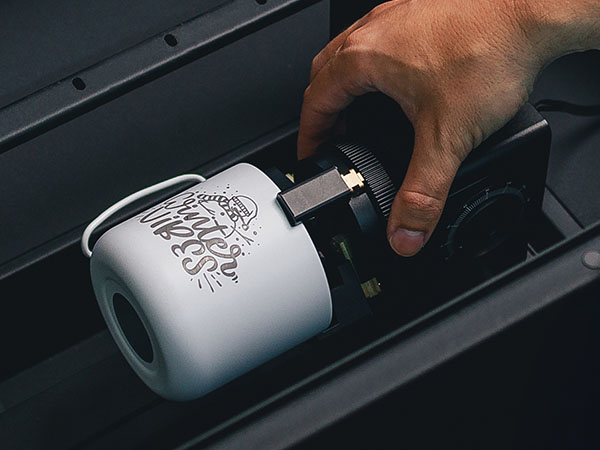

Beambox II’s Pocket Add-on not only handles thicker materials with ease but also supports Chuck Rotary, meeting the needs of cylindrical and various shaped objects. The expansion tray offers a working area of 15.16" x 8.27" and a depth of 8.46", expanding your creative space and opening up more diverse possibilities.

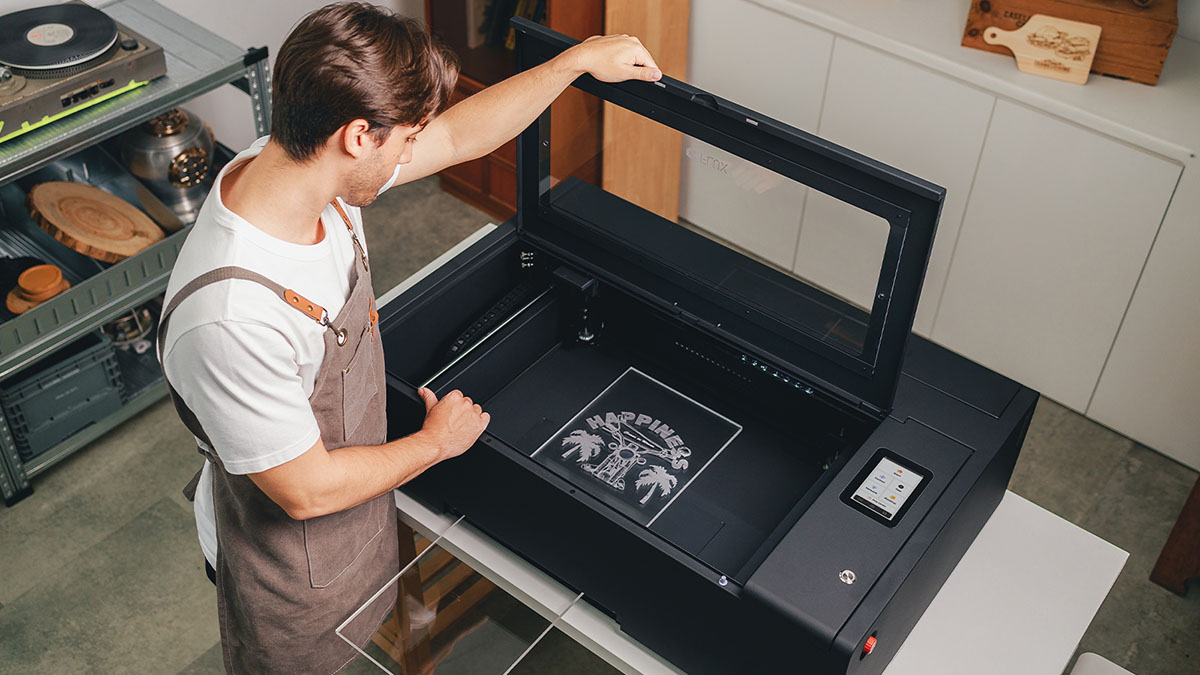

Passthrough, Beambox II Makes It Happen.

With the Passthrough feature, Beambox II adds open ends at the front and back, allowing you to effortlessly handle longer materials. No more limitations on length—your creativity knows no bounds.

Smooth, Smart, and Built for More

Optimize your workflow with the Auto Feeder—seamless handling, precise alignment, and continuous production for maximum efficiency.

Effortless Curve Engraving

The curve engraving feature is designed specifically for curved objects. By using red light for height measurement, the Z-axis dynamically adjusts throughout the engraving process to ensure precise results. Flawless precision on every curve, every detail—unlocking creative possibilities beyond the limits of flat surfaces.

*Software must be updated to version 2.4.6 or later, and firmware to version 6.0.7 or later.

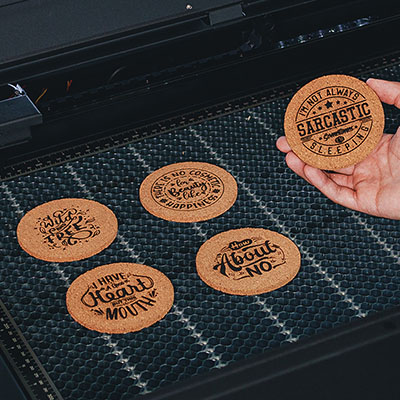

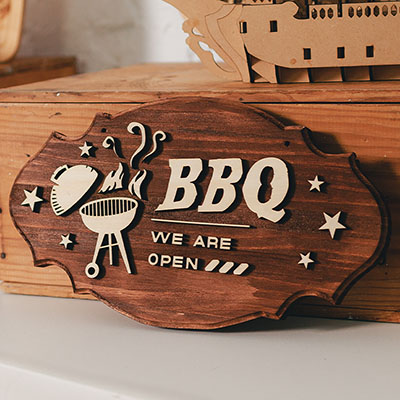

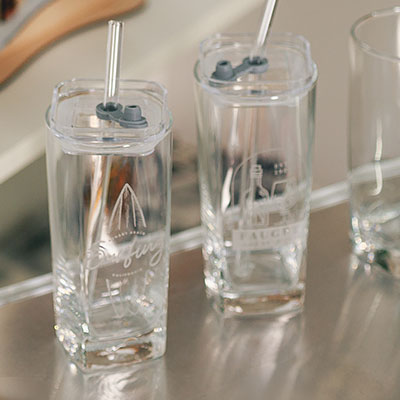

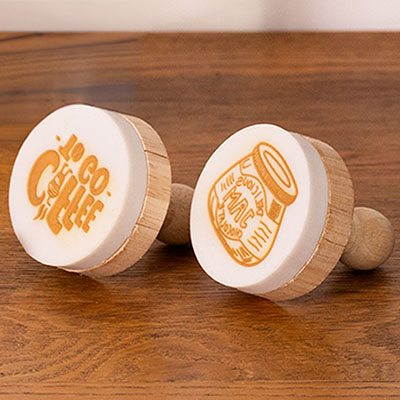

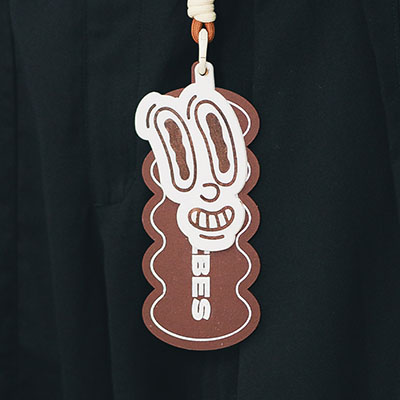

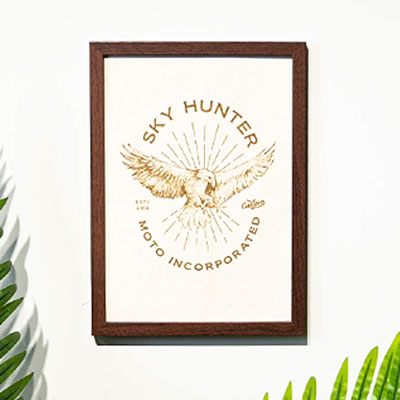

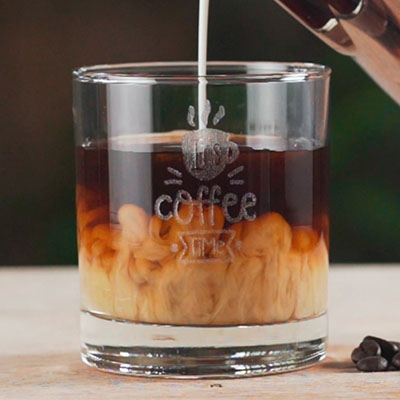

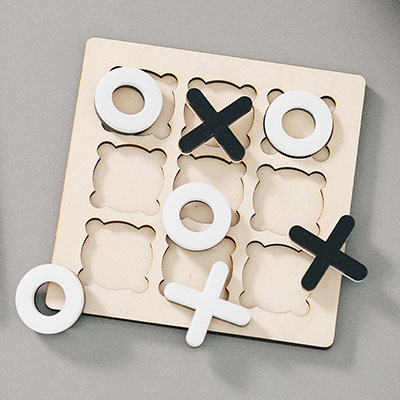

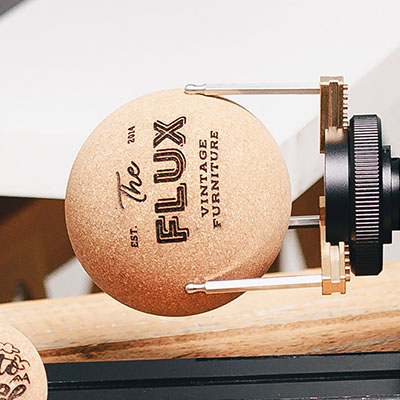

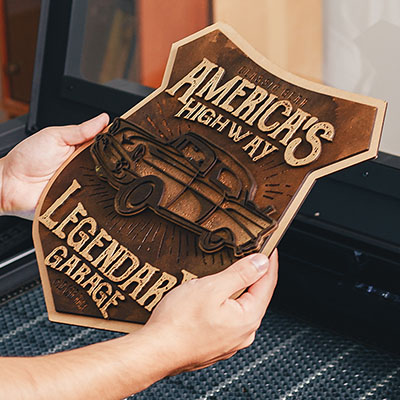

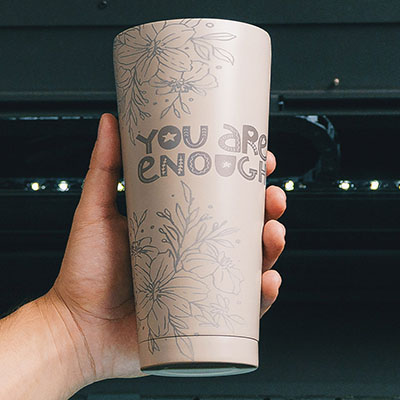

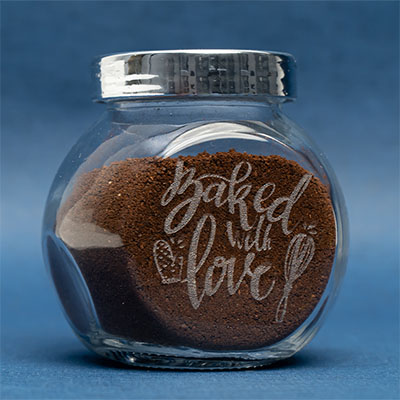

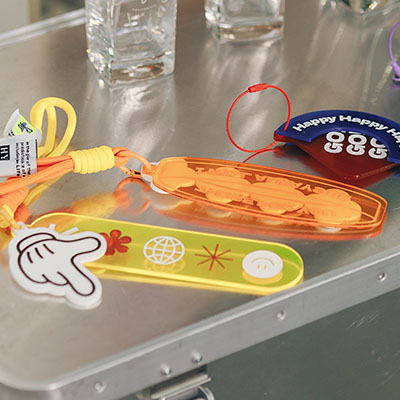

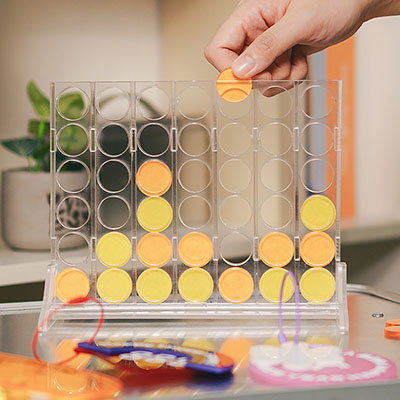

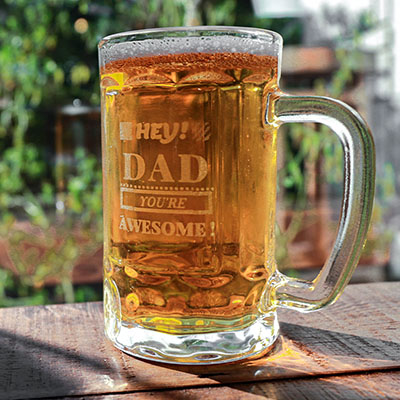

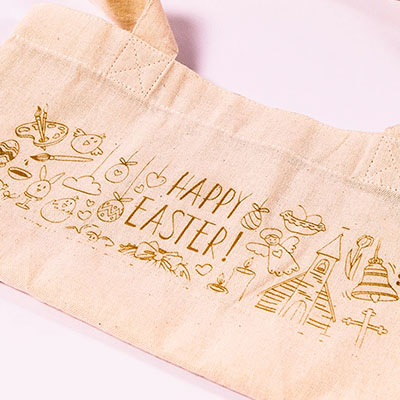

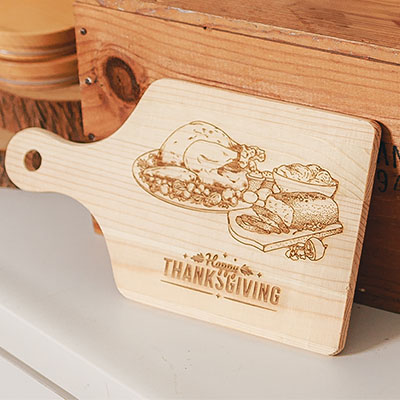

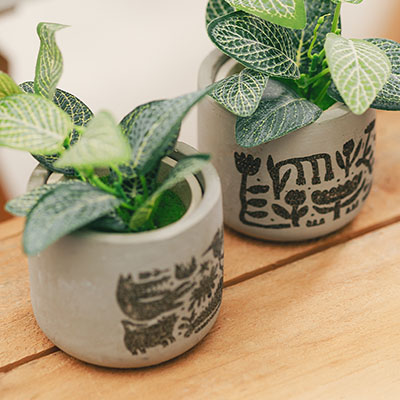

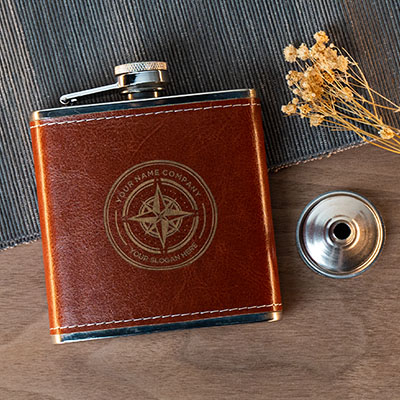

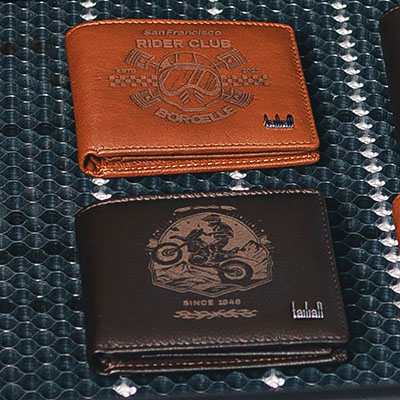

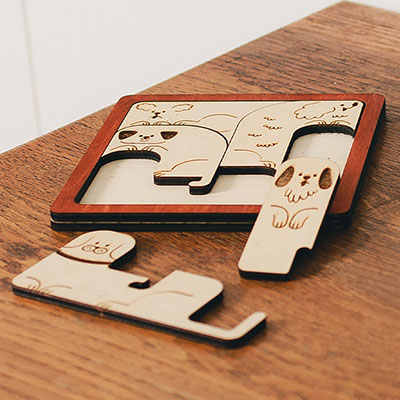

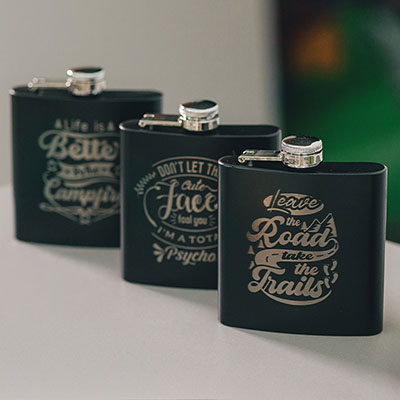

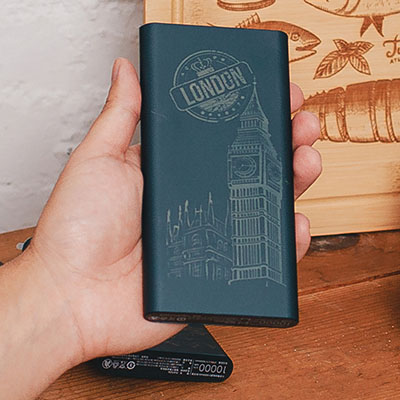

Easily Handle 100+ Materials.

Thoughtfully Designed. Fully Integrated.

One-touch Focus.
Ready in an Instant.

Say goodbye to manual adjustments. With just a tap, auto-focus is complete in 2-3 seconds.

Camera Preview.
5X Faster. 

No more long waits—quick, accurate previews and positioning make your creations more intuitive and convenient.

Red Light Preview.
Precision In Sight. 

The red light preview clearly outlines the engraving area, ensuring perfect alignment and minimizing material waste.

Touchscreen Control.
Intuitive Experience. 

With the intuitive touchscreen, operation is simpler than ever. From connecting to WiFi to checking work progress, everything is just a tap away.

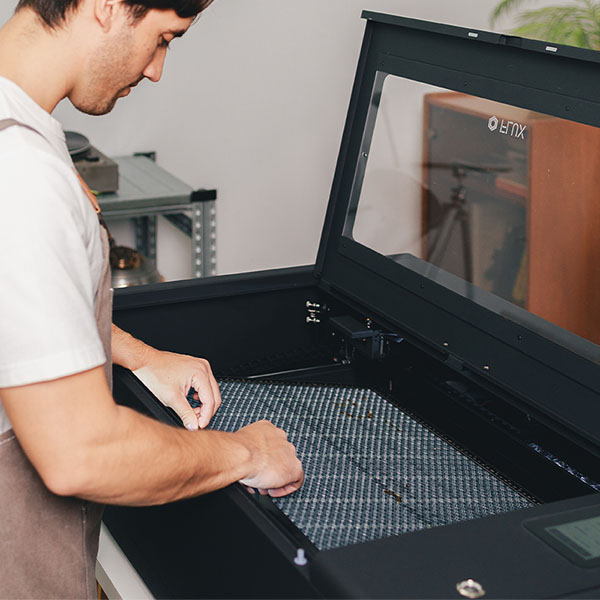

Honeycomb Design.
Every Detail Matters. 

Honeycomb design provides stable support, better ventilation, and heat dissipation, reducing burn marks. The handle allows for easy removal and supports thicker materials.

Auto Fit.
Auto Arrange.

Automatically recognizes the material's outer frame shape, enabling one-click batch processing of small items, saving time and effort.

Camera Preview. What You See is What You Get.

Real-time preview through your FLUX Laser’s built-in camera. Beam Studio lets you easily view the object’s position and size, and drag files directly.

Preset Parameters.
Optimized for Perfection.

Select fine-tuned cutting and engraving settings for common materials.

Intelligent Background Remover.

One-click to effortlessly remove image backgrounds, ideal for your portrait and pet photos.

Multi-layer Management in One Go.

Set different parameters for each layer and engrave or cut simultaneously.

Curated Element Assets.
Starter Essentials.

Choose from over 1,000,000+ vector elements to kickstart your design journey.

Smart Nest.
Maximizing Material Efficiency.

Save material by selecting multiple elements then one-click to organize.

Wide-Angle Camera, Faster Previews, LightBurn Ready!

Seamlessly integrate with LightBurn’s camera preview system. Whether you’re using Beam Studio or LightBurn, the Wide-Angle Camera ensures a smooth and precise workflow with just one tap. Expand your software options without limitations.

Your Safety. Our Top Priority.

Beambox II is certified by CE, FCC, and FDA, meeting global safety and quality standards. Additionally, it complies with the IEC60825-1 standard and is SGS-certified, providing users with the highest level of safety assurance.

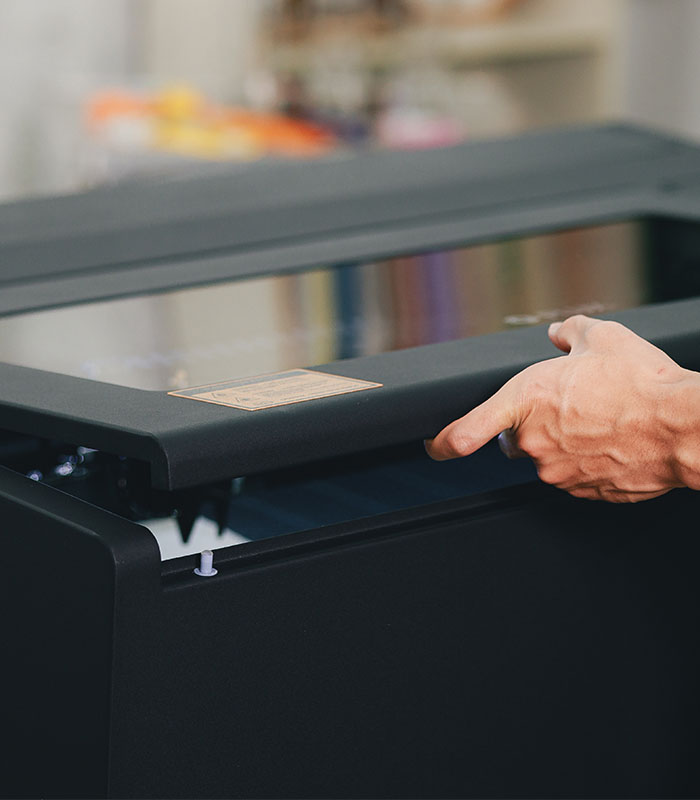

Fully Enclosed.
Complete Protection.

Constructed with a full metal enclosure, the machine stops automatically when the lid is opened.

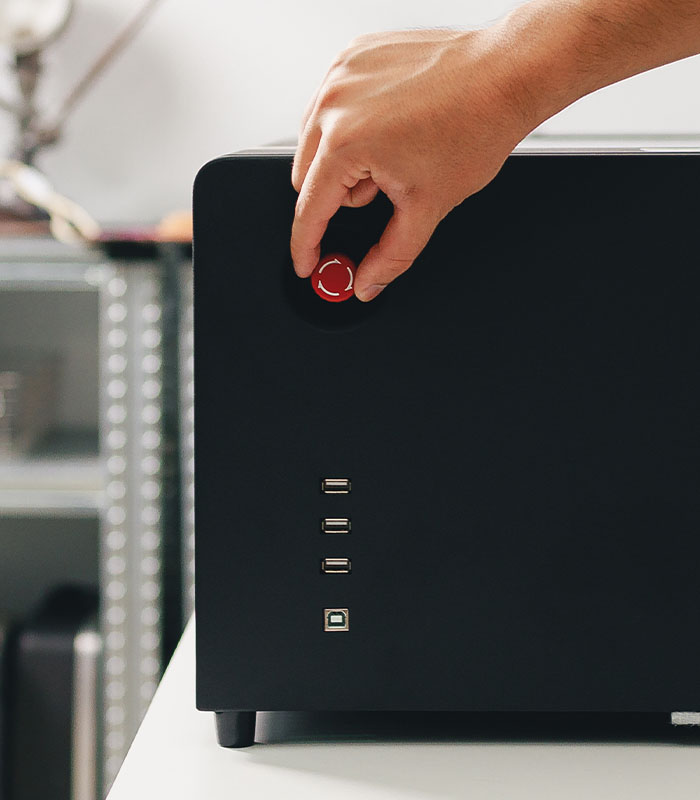

Emergency Stop.
Immediate Shutdown.

An emergency stop button on the side of the machine instantly halts operation in case of urgent situations.

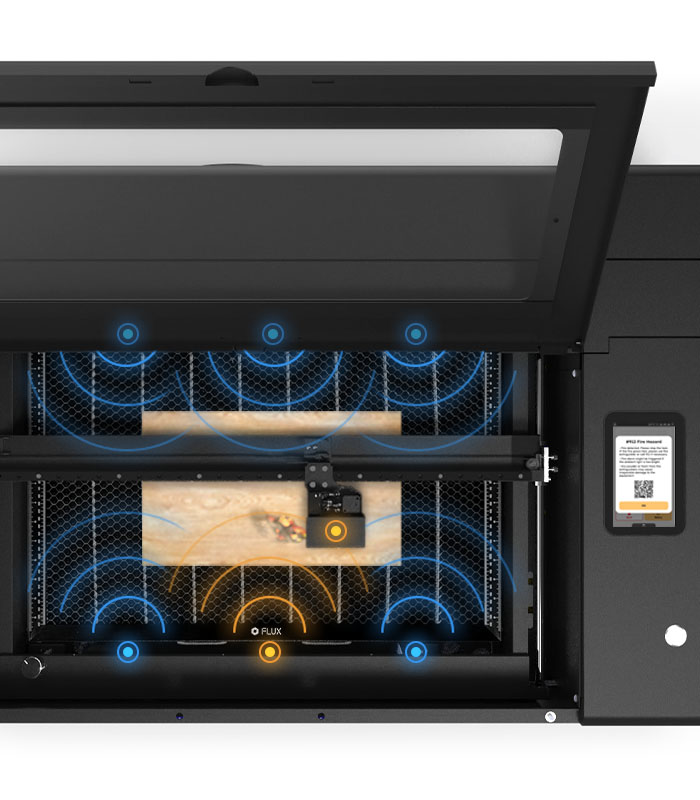

Automatic
Flame Sensor

Beambox II is equipped with 7 flame sensors within its working area. If a flame is detected during operation, an alarm will immediately sound, ensuring enhanced safety.

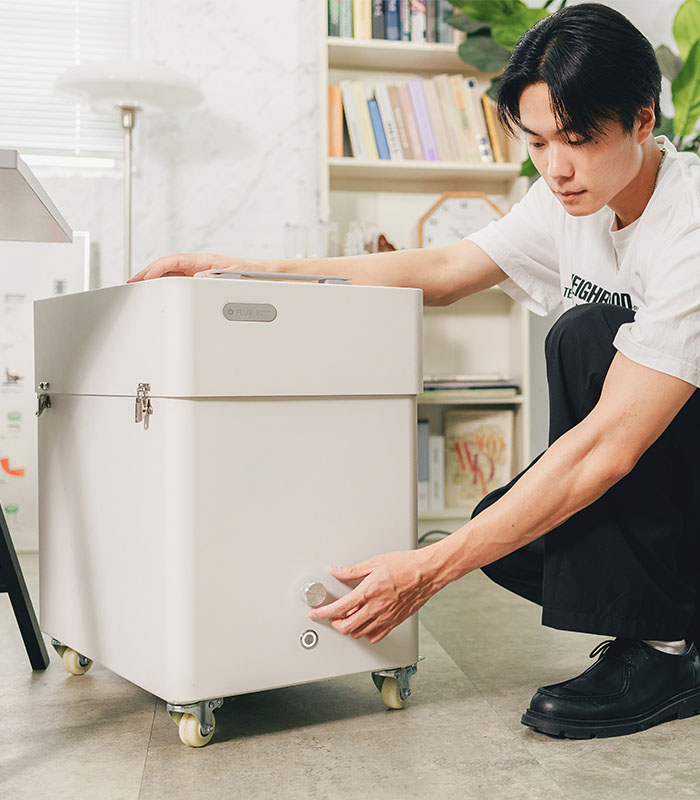

Beam Air Pro.
Triple Layer Protection. 

Equipped with a high-quality three-layer filter, including a pre-filter, HEPA filter, and activated carbon filter.

We Are Here to Support Your Needs.

Local Support

With an extensive network of over 190 partners spread across 70+ countries, you can count on us to be there whenever you need assistance.

10-years Experience

Leveraging over a decade of unparalleled expertise in the 3D printing and laser cutting industry, we are dedicated to providing top-tier solutions that exceed customer expectations.

Class 1 Safety

At FLUX, we prioritize safety above all else and consistently design laser cutters to Class 1 Safety standards, providing you with peace of mind.

Facebook User Group

Join our official user group to connect with users worldwide. Enter contests for a chance to win vouchers.

Instagram

Get inspired by FLUX and our users and be on the lookout for events on Instagram. #createwithFLUX to join.

Beambox II Specifications

Product Spec

Laser Spec

55W CO2

Size

39.57" x 27.24" x 13.15"
(1005 x 692 x 334 mm)

Weight

107 lbs (48.5 kg)

Max Engraving Speed

35.43 inches/s
(900mm/s)

Max Acceleration

317 inches/s²
(8000mm/s²)

Resolution

1000 DPI

Display

5” HD LCD Touchscreen

Focus Mode

Auto Focus

Laser Alignment

Camera Preview / Red Light Preview

Camera

8 MP CMOS

Connectivity

WiFi / USB / Ethernet (by USB Dongle)

Operating System

Windows / macOS / Linux / ChromeOS / Web (iOS, iPadOS, Android)

Software

Beam Studio / LightBurn

Work Area

Bed Size

24.80" x 17.13"
(630 x 435 mm)

Work Area

23.62" x 14.76"
(600 x 375 mm)

Work Area Depth

Without honeycomb: 4.92" (125 mm)
With honeycomb: 2.36" (60 mm)
With Extension Pocket Add-on: 8.46" (215 mm)

Extension Pocket Area

15.16" x 8.27"
(385 x 210 mm)

Wide-Angle Camera

Camera Resolution

8MP

Max Preview Area

23.62" x 14.76" (600 x 375 mm)

Unpreviewable Areas (triangular regions) :

LightBurn

X80, Y70 & X520, Y70

Beam Studio

X45, Y60 & X570, Y35

*May vary by calibration and focus height.

Preview Accuracy:

LightBurn

±2 mm (±0.08") in the center of the work area

Beam Studio

±2 mm (±0.08")

Preview accuracy depends on camera calibration and door lid angle status; slight deviations are normal. In optimal areas, accuracy is typically ±2 mm (±0.08"), and ±2–5 mm (±0.08–0.20") in other areas.
Optimal Preview Area for LightBurn: 305 × 305 mm (12.01″ × 12.01″), centered within the work area.

Auto Feeder

Material:

Max Width

13.78" (350 mm) or *20.67" (525 mm)

Max Thickness

0.55" (14 mm) or *1.97" (50 mm)

Process Area:

Max Width

13.78" (350 mm) or *14.76" (375 mm)

Max Length (Depth)

64.39" (1610 mm)

Max Clamp Thickness

0.79" (20 mm)

* : With Extension Pocket Add-on & Auto Feeder Extension Pocket.

Passthrough

Material Depth

0.55" (14 mm)

Material Width

13.78" (350 mm)

Chuck Rotary

Cylinder Diameter

0.04" to 5.71"
(1 - 145 mm)

Ring Diameter

0.43" to 5.71"
(11 - 145 mm)

Sphere Diameter

0.98" to 5.12"
(25 - 130 mm)

Engraving Length

19.69" (500 mm)

FAQ

General

1. What is Beambox II?

Beambox II is the second-generation laser cutter of Beambox, featuring an upgraded 55W laser. It can cut and engrave common materials such as wood, leather, acrylic, and paper. With comprehensive hardware and software upgrades, it offers a more intuitive user experience.

2. What are the differences between Beambox II, Beambox, and Beambox Pro?

Each machine was released at different times and features different laser power levels. Beambox has a 40W laser, capable of cutting up to 0.47” (12mm) thick materials, depending on the material type. Beambox Pro features a 50W laser, allowing for a maximum cutting thickness of 0.55” (14mm). Beambox II is the latest model in the Beambox series, equipped with a 55W laser that can cut up to 0.79” (20mm) thick materials. It also comes with further hardware and software upgrades. We recommend choosing the model that best suits your needs.

About Hardware

1. Do I need to learn any skills before using Beambox II?

Before using a laser cutter, it's recommended to have basic design knowledge and an understanding of laser cutting machine operations. You can quickly learn the basics through FLUX’s official YouTube channel or social media platforms like Instagram, Facebook, or the FLUX Facebook Group. For more details, please refer to the Beambox II Help Center.

2. Does Beambox II come with a warranty? How long is the coverage?

Beambox II comes with a 12-month warranty. The 55W laser tube is covered by a 3-month limited warranty. For more details, please refer to the Beambox II Warranty Terms & Disclaimer.

3. What materials can Beambox II cut and engrave?

Beambox II precisely cuts wood, acrylic, leather, and cardboard, with a maximum cutting thickness of 0.79 inch (20 mm) (depending on the material). It can engrave a wide range of materials, including stone, anodized metal, glass, and rubber.

4. Can Beambox II cut deeper than the material specifications?

By reducing the speed in the software or performing multiple passes, you can achieve deeper cuts.

5. Does the camera preview area of Beambox II fully cover the working area?

Yes, the camera preview area perfectly matches the working area.

6. How do I align materials on Beambox II?

You can use the camera preview function in the top left corner of Beam Studio software or by using the red light preview function in the top right corner of Beam Studio software.

7. How do I focus the material on Beambox II?

Beambox II has built-in auto focus. Simply press and hold the AF button on the bottom left of the touchscreen for 2–3 seconds to complete the focusing process.

8. Laser sounds dangerous. What safety precautions should I take?

Beambox II is CE, FCC, and FDA certified, meeting global safety and quality standards. It also complies with IEC60825-1 standards and is SGS certified, ensuring the highest level of safety for users. The fully enclosed design includes a lid-open safety stop mechanism and an emergency stop button on the right side of the machine. Pressing the emergency stop button will immediately halt the machine’s operation.

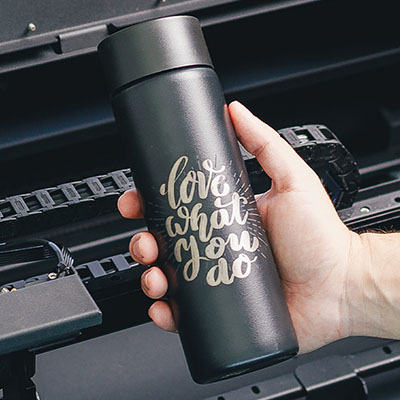

9. Can Beambox II cut metal?

Beambox II is a CO2 laser cutter and can only engrave on anodized or painted metal. However, It can cut wood, acrylic, leather, and cardboard perfectly.

10. Does Beambox II have built-in air assist and exhaust functions?

Yes, Beambox II has a built-in air pump and a powerful exhaust fan. The air pump prevents materials from burning or leaving scorch marks, while the exhaust fan removes cutting fumes from the machine.

11. Does Beambox II comes with a honeycomb cutting platform?

Yes, Beambox II includes a honeycomb platform. With the honeycomb platform installed, the maximum material thickness is 2.36 inches (6 cm). If you remove the honeycomb platform, the maximum material thickness is 4.92 inches (12.5 cm). If you remove the honeycomb platform and install the Extension Pocket Add-on, the maximum material thickness is 8.46 inches (21.5 cm). If you need to purchase the Extension Pocket Add-on, please click this link.

12. What is the recommended installation environment?

We recommend installing Beambox II in a well-ventilated area with a window. Laser cutting generates combustion fumes and dust, so use the included vent hose to direct fumes outside. Some fumes may escape when opening the lid, so ensure proper indoor ventilation or use an Air Filter.

13. What maintenance does the machine require?

All CO2 laser machines require regular maintenance. Clean the mirrors and focus lens regularly based on usage and material type—typically about once a week. Apply lubricant to the linear rails periodically for smooth operation. If the water level in the cooling tank drops after long-term use, refill it with distilled water.

14. What consumables does Beambox II require? How long do they last?

Under normal use, the laser tube lasts about 6–12 months, depending on power settings and usage frequency. If replacement is needed, refer to our laser tube replacement guide.

About Software

1. Is Beam Studio free?

Yes, it’s completely free! Even if you haven’t purchased a machine, you can freely download and try it out or use the web version. Visit the Beam Studio page to learn more about its features.

2. What file formats does Beam Studio support?

Beam Studio supports SVG, JPG, PNG, PDF, DXF, AI, and WEBP.

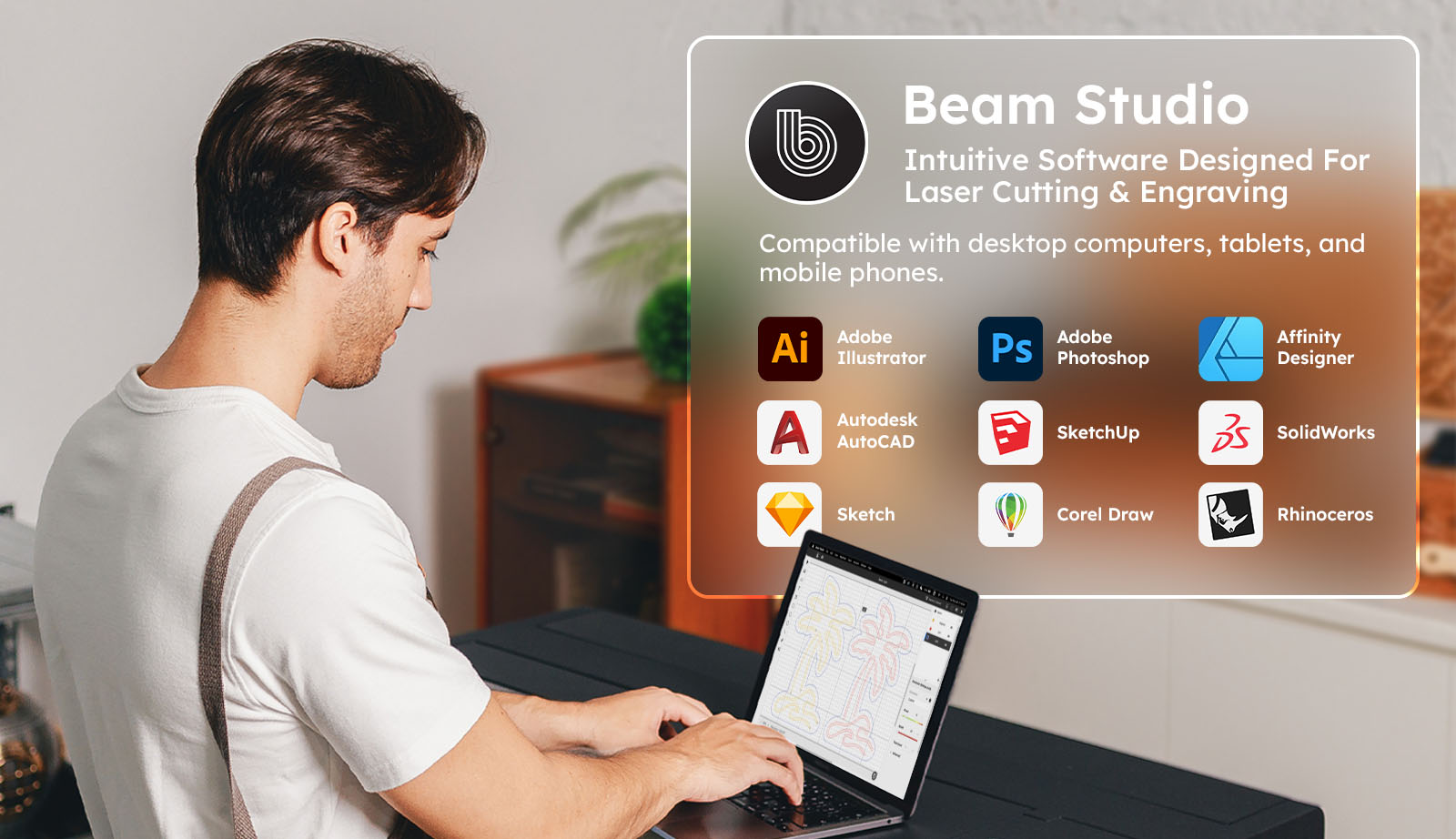

3. Which design software is compatible with Beam Studio?

Beam Studio is compatible with Adobe Illustrator, Adobe Photoshop, Affinity Designer, Autodesk AutoCAD, SketchUp, and various other design software.

4. What is the function of the touchscreen panel?

The high-resolution touchscreen panel, embedded in the machine’s casing, allows users to directly check the machine’s status and progress.

5. How can Beambox II connect to a network?

Beambox II can connect via Wi-Fi or Ethernet.

6. Which operating systems support Beam Studio?

Beam Studio is available for Windows 10+, macOS 11+, Linux 20+, and ChromeOS.
